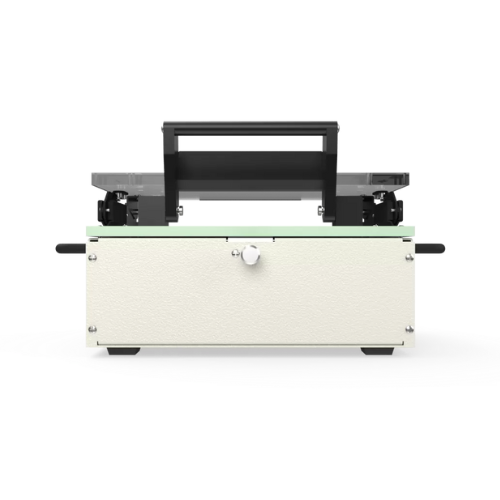

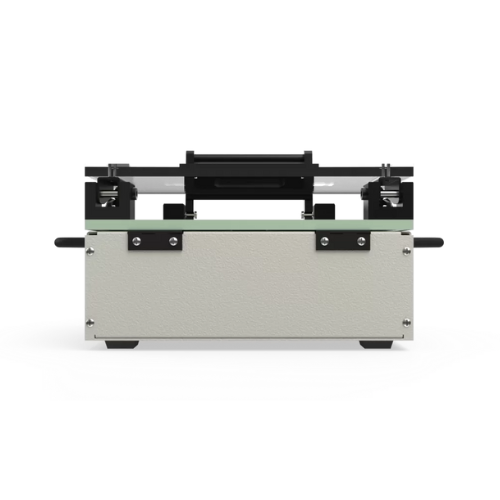

‘- Robust handle and latch assembly
– A suitable supply of PF1 Push Fingers included (Extra available for purchase)

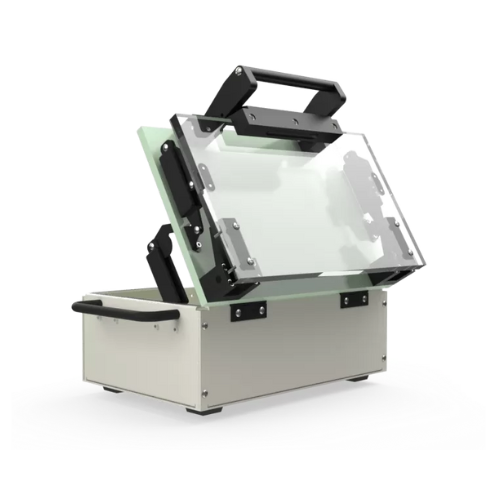

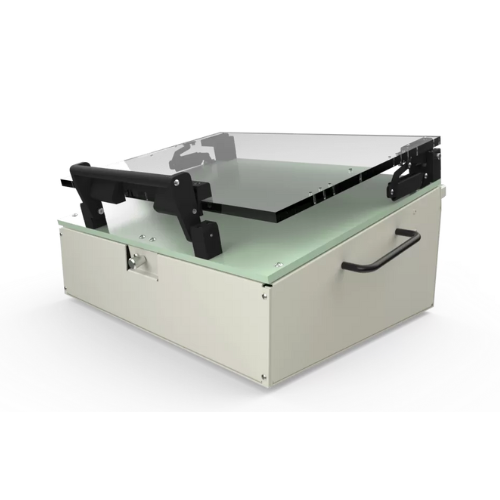

– Clear polycarbonate lid allows visibility of UUT. (space under lid when closed = 41mm)
– Probe plate locking screw
– All side and base plate can be removed for drilling. 100Mm deep pan is supplied as standard

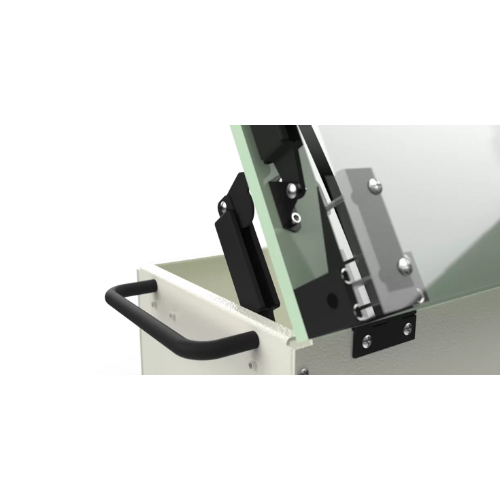

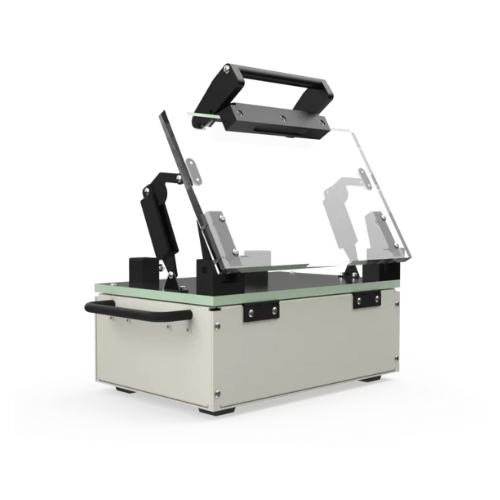

– Two Carlson springs allow the top plate to remain open at any position (except MF0SC)

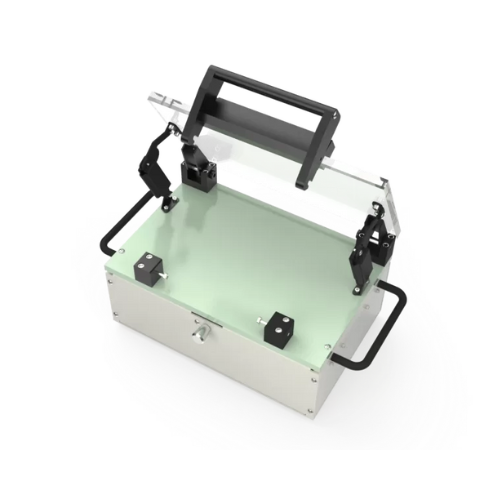

– Probe plate will open on hinges, allowing access to the pan. (probe plate thickness – 9.75mm)

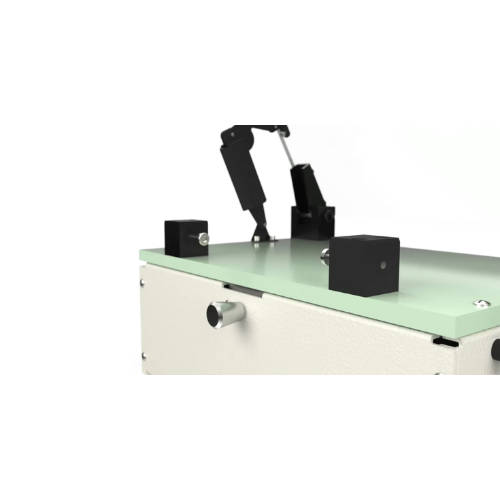

– Pan latch button and locking screw
coda pin official partner

Single Item Price from: £558.23



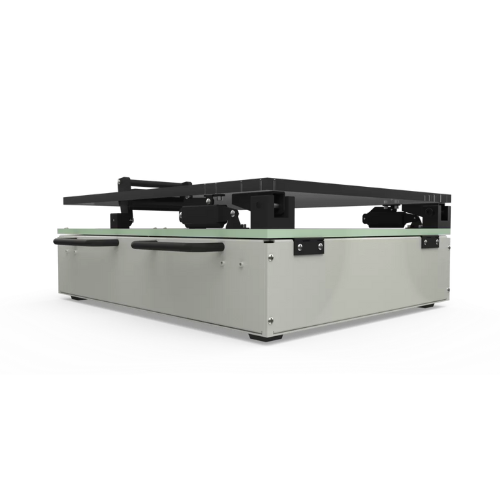

The MF Series, by Coda-Pin, is designed to test simpler PCBs, such as those containing low density, conventional circuitry. Devtank has teamed up with Coda to offer their test jigs as a full test fixture solution, with a range of options to fully customize and bespoke build your ideal solution

Typical examples;
• Repair and Calibration Stations
• Testing PCBs such as power supplies and control boards
• Modules and Sub-Assembly Alignment

This series has a hinged polycarbonate top plate which, when latched closed, and using the supplied push fingers, puts a downward force onto the PCB and the test probes

Each Coda test fixture comes with these options;
• Gas Struts or Friction Springs
• Transparent Lexan/Perspex Plate or Standard Gate
• ESD Coatings

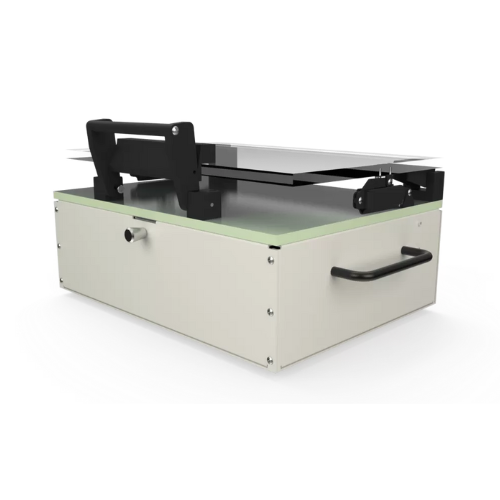

• Upper Heads Only (No Pan)
• Dual Well Machines
• Riser Block Sets
• Safety Microswitch

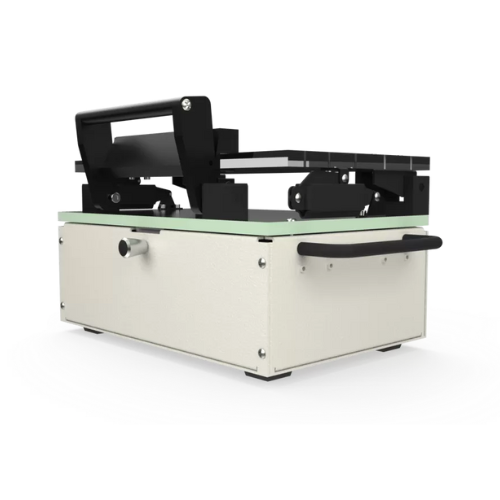

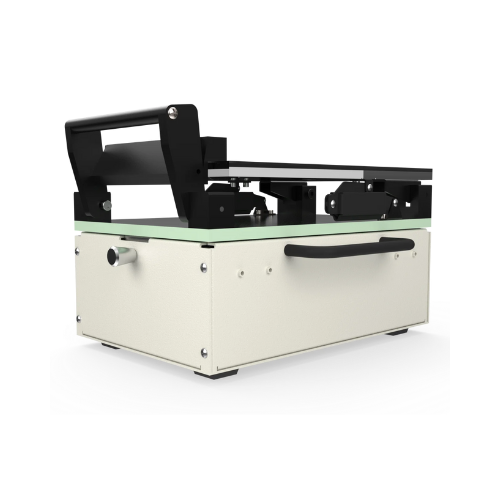

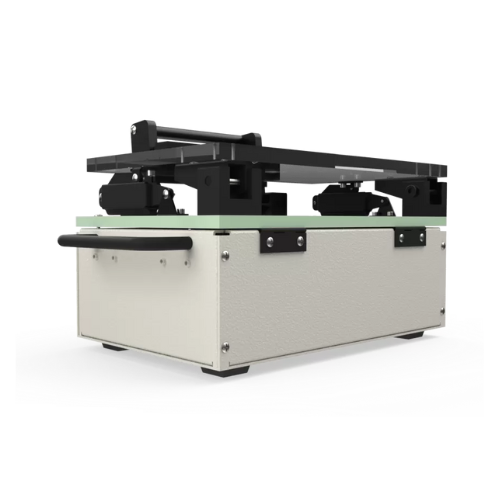

MF1SCS – Base Box Size mm = 300 x 200 x 100 / Max UUT mm = 230 x 100 / Max probe count (6oz probes) = 150
