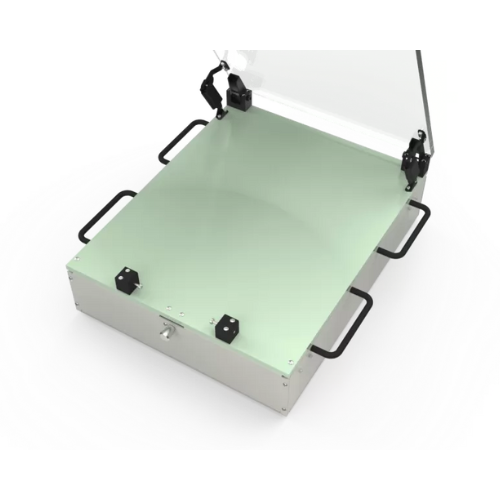

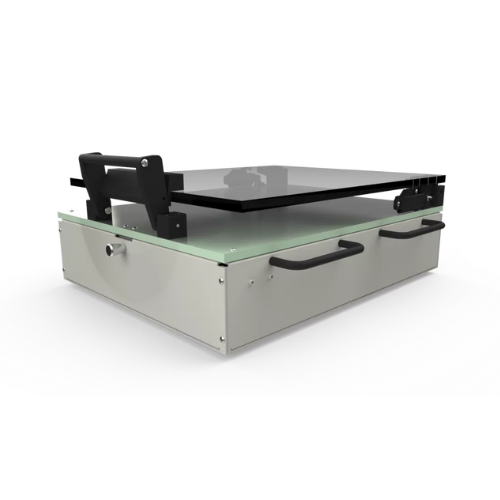

MF3SC

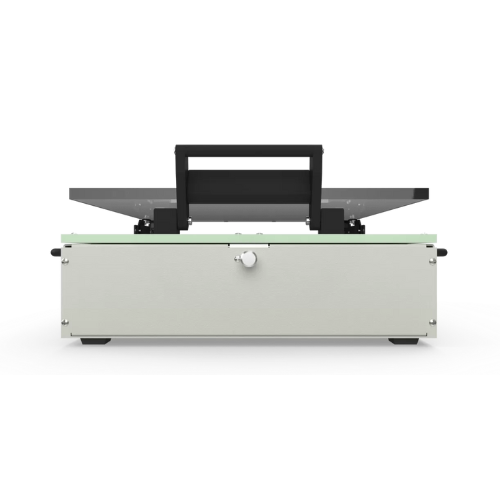

‘- Robust handle and latch assembly
– A suitable supply of PF1 Push Fingers included (Extra available for purchase)

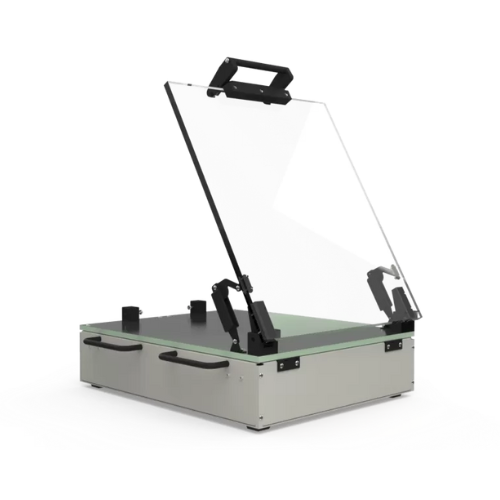

– Clear polycarbonate lid allows visibility of UUT. (space under lid when closed = 41mm)

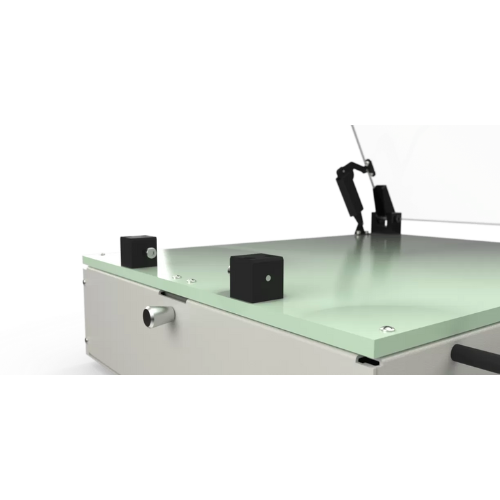

– Probe plate locking screw
– All side and base plate can be removed for drilling. 100Mm deep pan is supplied as standard

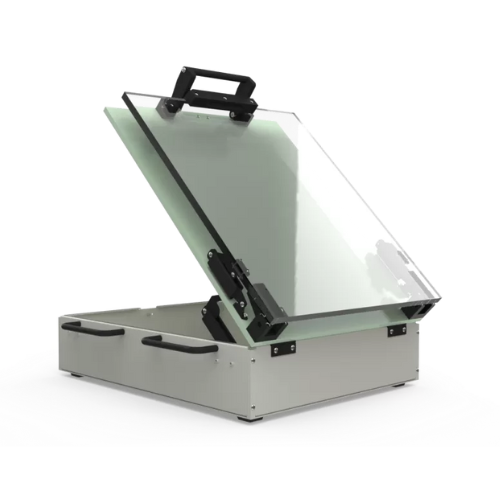

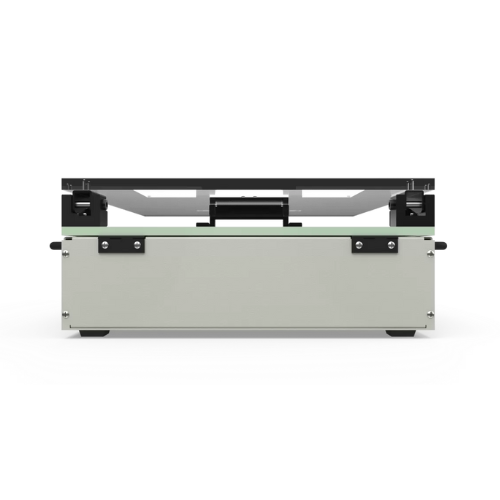

– Two Carlson springs allow the top plate to remain open at any position (except MF0SC)

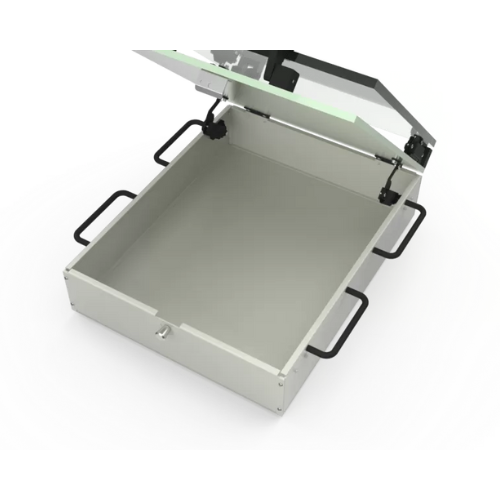

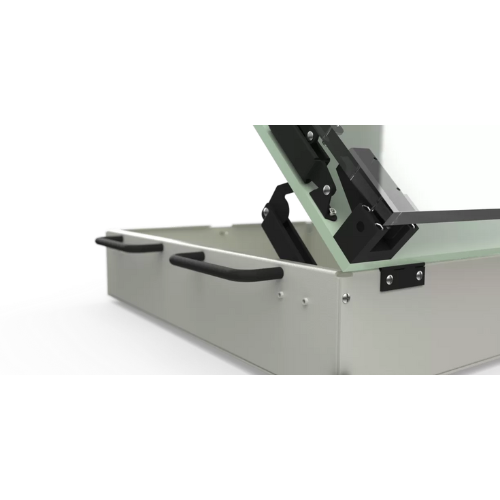

– Probe plate will open on hinges, allowing access to the pan. (probe plate thickness – 9.75mm)
– Pan latch button and locking screw
Description
The MF Series, by Coda-Pin, is designed to test simpler PCBs, such as those containing low density, conventional circuitry. Devtank has teamed up with Coda to offer their test jigs as a full test fixture solution, with a range of options to fully customize and bespoke build your ideal solution
Typical examples;
• Repair and Calibration Stations
• Testing PCBs such as power supplies and control boards
• Modules and Sub-Assembly Alignment
This series has a hinged polycarbonate top plate which, when latched closed, and using the supplied push fingers, puts a downward force onto the PCB and the test probes
Each Coda test fixture comes with these options;
• Gas Struts or Friction Springs
• Transparent Lexan/Perspex Plate or Standard Gate
• ESD Coatings
• Upper Heads Only (No Pan)
• Dual Well Machines
• Riser Block Sets
• Safety Microswitch
MF3SC – Base Box Size mm = 400 x 500 x 100 / Max UUT mm = 350 x 350 / Max probe count (6oz probes) = 250
