CGF2S

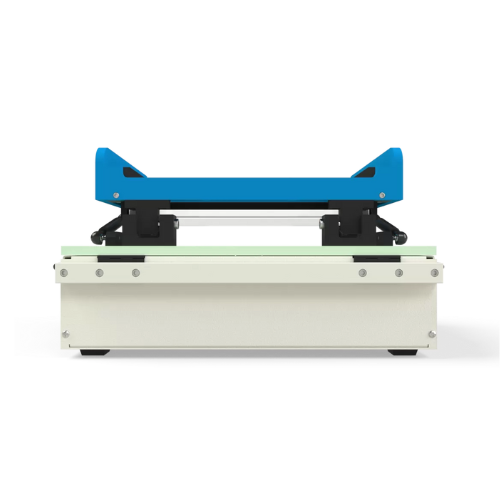

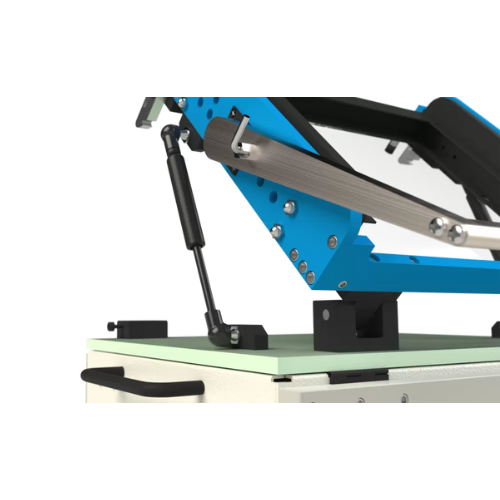

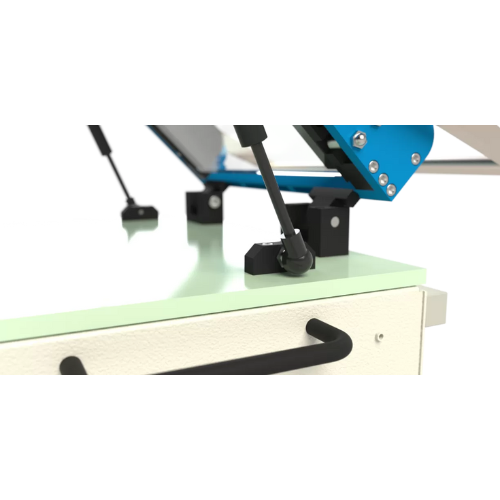

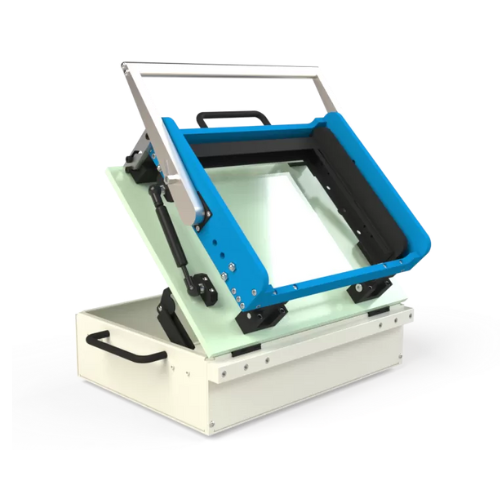

‘- Anti-slam gas springs

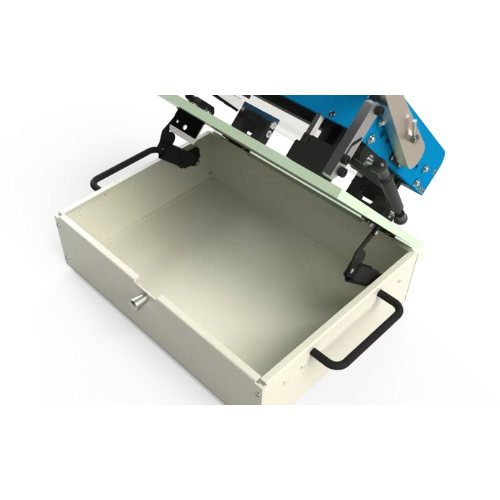

– 100mm deep pan

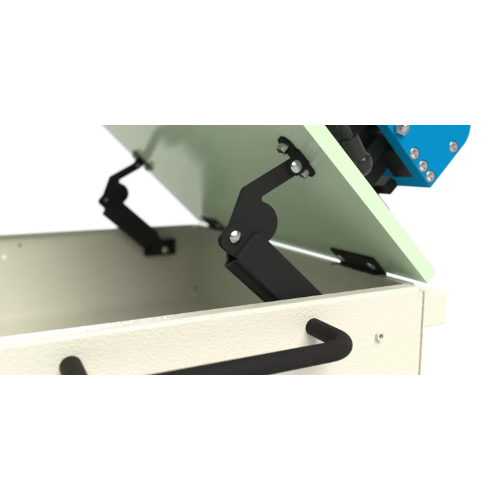

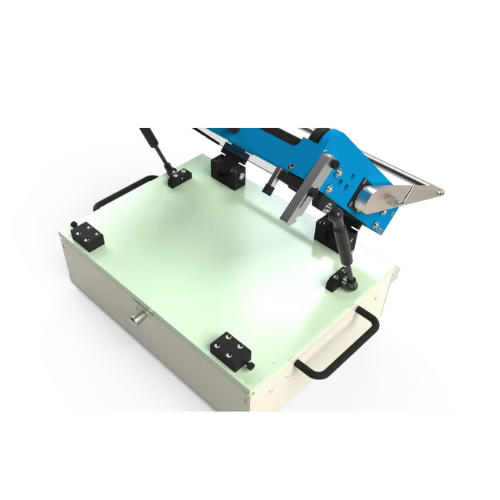

– Hinged probe plate allowing access to the inside pan
– Robust handle and latch assembly with interlock
– Supplied with the gate and adjustable rails
**Adjustable push fingers not supplied – Please contact for more details**
– All sides and base plates can be removed for customisation

coda pin official partner

Single Item Price from: £2,295.95







Category:

Description

The CGF Series, by Coda-Pin, uses adjustable push fingers and is designed to test low to medium density PCBs, such as those containing conventional and surface mount circuitry. Devtank has teamed up with Coda to offer their test jigs as a full test fixture solution, with a range of options to fully customize and bespoke build your ideal solution

Typical Examples;
• Repair and Calibration Stations
• Low to Medium volume testing of PCBs – such as power supplies and control boards
• Single or Double-side PCB Probing

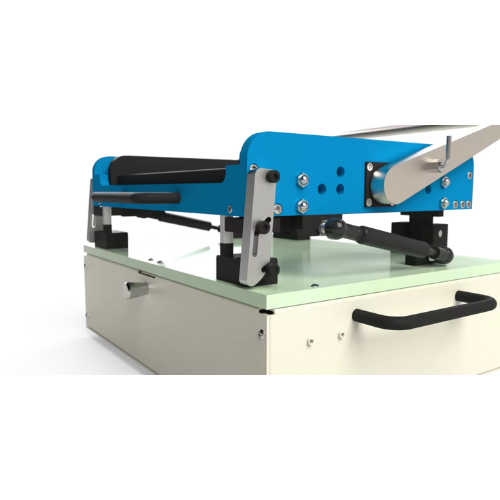

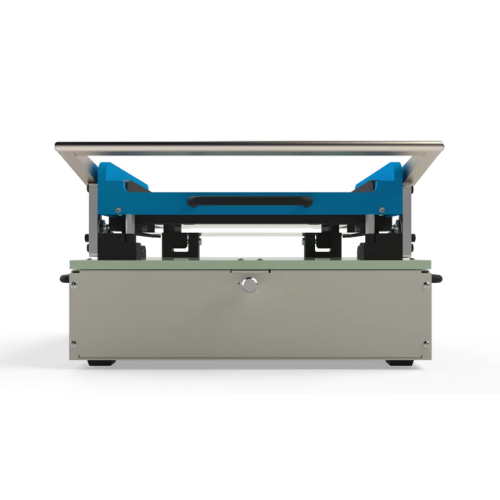

This series has a cam-operated gate fitted onto the hinged lid. When the lid is latched closed, the handle will then push down the gate, pressing the PCB into position upon the probe field. This will ensure a true linear downward motion onto the PCB. The cam-operated gate allows limited access to the upper side of the PCB. The optional stripper plat supports the PCB and protects the probe field.

Each Coda test fixture comes with these options;
• Gas Struts or Friction Springs
• Transparent Lexan/Perspex Plate or Standard Gate
• ESD Coatings
• Upper Heads Only (No Pan)
• Dual Well Machines
• Riser Block Sets
• Safety Microswitch

CGF2 / + Stripper Plate – Box Size (W x L x D) mm = 400 x 300 x 100 / Max UUT mm = 250 x 200 / Max Node Count (6oz Probes) = 550
